Circlip for shaft φ30

$1.94 View Item

Gasket 30.2×43×4

$11.34 View Item

I driven gear

$211.85 View Item

Needle bearing NK353020

$15.70 View Item

Flat washer φ30.3×φ43×2

$11.34 View Item

RI connection sleeve

$81.70 View Item

Circlip for shaft φ38

$1.94 View Item

Flat washer φ38.3×φ52×1.5

$11.34 View Item

R driven gear

$171.46 View Item

Needle bearing NK384620

$18.61 View Item

Intermediate shaft I

$408.10 View Item

Flat key B8×7×17

$9.07 View Item

Ⅱ driven gear

$176.22 View Item

Ⅲ driven gear

$188.14 View Item

Parking gear

$179.82 View Item

Flat washer φ30.2×φ35×2

$11.34 View Item

Circlip for shaft φ34

$1.94 View Item

Bridge main gear I

$122.09 View Item

Friction disc circlip thickness 5

$9.96 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

Rear diff driving friction disc

$11.34 View Item

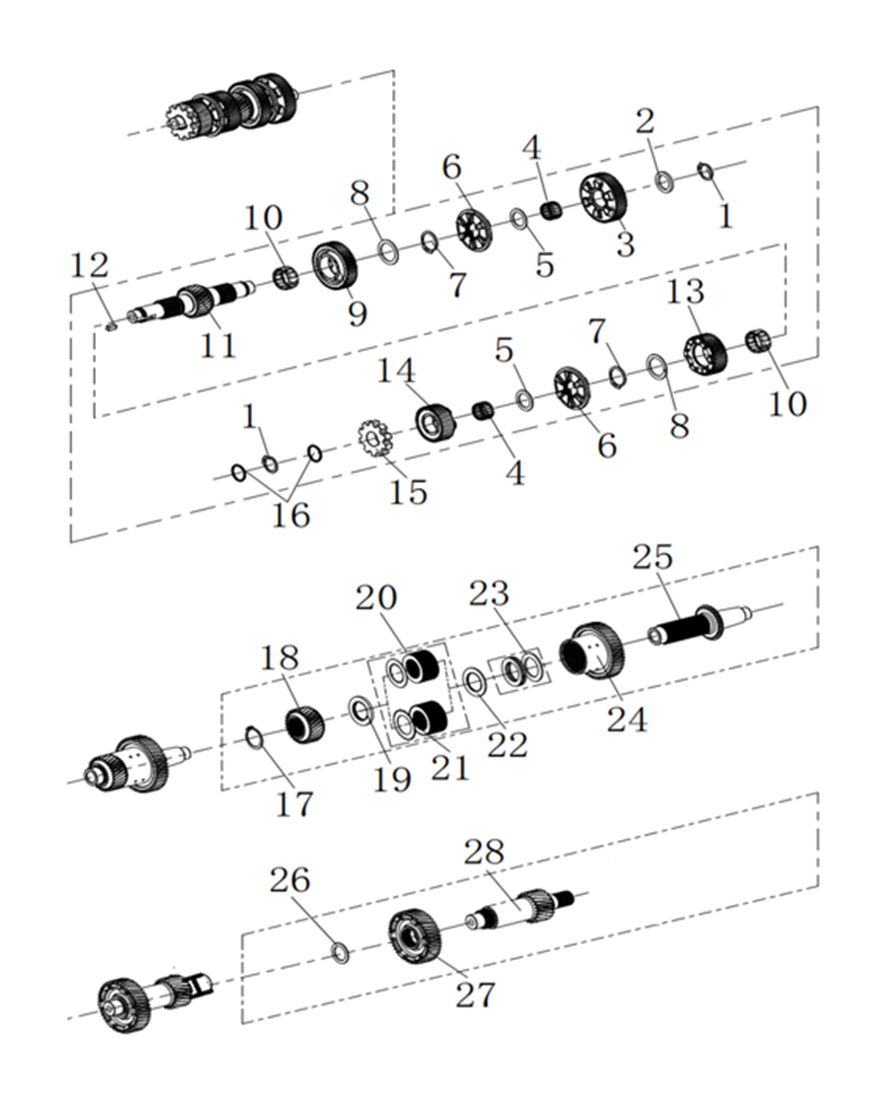

Product Mapper

Item Number Description Part Number Price
1
Circlip for shaft φ30
BGB894.1-30 $1.94 		BGB894.1-30 $1.94
2
Gasket 30.2×43×4
90602000010 $11.34 		90602000010 $11.34
3
I driven gear
23221-E0-00 $211.85 		23221-E0-00 $211.85
4
Needle bearing NK353020
BGB290-NK353020 $15.70 		BGB290-NK353020 $15.70
5
Flat washer φ30.3×φ43×2
90609000016 $11.34 		90609000016 $11.34
6
RI connection sleeve
23226-E0-00 $81.70 		23226-E0-00 $81.70
7
Circlip for shaft φ38
BGB894.1-38 $1.94 		BGB894.1-38 $1.94
8
Flat washer φ38.3×φ52×1.5
90609000017 $11.34 		90609000017 $11.34
9
R driven gear
20010337001 $171.46 		20010337001 $171.46
10
Needle bearing NK384620
BGB290-NK384620 $18.61 		BGB290-NK384620 $18.61
11
Intermediate shaft I
23220-E0-00 $408.10 		23220-E0-00 $408.10
12
Flat key B8×7×17
90902000004 $9.07 		90902000004 $9.07
13
Ⅱ driven gear
23227-E0-00 $176.22 		23227-E0-00 $176.22
14
Ⅲ driven gear
23222-E0-00 $188.14 		23222-E0-00 $188.14
15
Parking gear
23227-E0-00 $179.82 		23227-E0-00 $179.82
16
Flat washer φ30.2×φ35×2
90609000018 $11.34 		90609000018 $11.34
17
Circlip for shaft φ34
BGB894.1-34 $1.94 		BGB894.1-34 $1.94
18
Bridge main gear I
E02323200 $122.09 		E02323200 $122.09
19
Friction disc circlip thickness 5
20011337001 $9.96 		20011337001 $9.96
20
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
21
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
22
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
23
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
24
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
25
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
26
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
27
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
28
Rear diff driving friction disc
20012337001 $11.34 		20012337001 $11.34
Description
INTERMEDIATE SHAFT
