Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Cylinder head assemblyE01220A00 $1,143.07 |
E01220A00 | $1,143.07 | |
| 2 | SPD Spark plug SR312-10E03330000 $134.92 |
E03330000 | $134.92 | |
| 3 | Spark plug hole gasketE01231300 $8.11 |
E01231300 | $8.11 | |
| 4 | Combined seal ringφ18.4×φ25×290617100001 $18.47 |
90617100001 | $18.47 | |
| 5 | Oil duct plug M18 × 1.5 ×8.5E01120510 $2.44 |
E01120510 | $2.44 | |
| 6 | Washer 10×21×390602100008 $5.51 |
90602100008 | $5.51 | |
| 7 | Stud M10×1.25×12712112337001-0001 $17.34 |
12112337001-0001 | $17.34 | |
| 8 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 9 | Water outlet pipe assemblyE01927001 $32.03 |
E01927001 | $32.03 | |
| 10 | Hex bolt with flange M6×16BGB5787-M6×16 $0.65 |
BGB5787-M6×16 | $0.65 | |
| 11 | Hex bolt with flange M6×12BGB5787-M6×12 $0.65 |
BGB5787-M6×12 | $0.65 | |
| 12 | Φ25 304 stainless steel clamp with coatingPJ00000907400200 $6.95 |
PJ00000907400200 | $6.95 | |
| 13 | Hex bolt with flange M6×40BGB5787-M6×40 $0.97 |
BGB5787-M6×40 | $0.97 | |
| 14 | Aluminum washer 6×12×1.5PJ00000906010100 $0.49 |
PJ00000906010100 | $0.49 | |
| 15 | Thermostat cover gasketE01941100 $0.43 |
E01941100 | $0.43 | |
| 16 | Thermostat coverE01900900 $6.37 |
E01900900 | $6.37 | |
| 17 | Hex bolt with flange M6×20BGB5787-M6×20 $0.65 |
BGB5787-M6×20 | $0.65 | |
| 18 | Cylinder head gasketE01207A00 $96.96 |
E01207A00 | $96.96 | |
| 19 | Positioning pin 14×16PJ00000908020600 $0.92 |
PJ00000908020600 | $0.92 | |
| 20 | Stud M10×1.25×12512112337003-0001 $16.85 |
12112337003-0001 | $16.85 | |
| 21 | Stud M10×1.25×12512112337003-0001 $16.85 |
12112337003-0001 | $16.85 |
Description

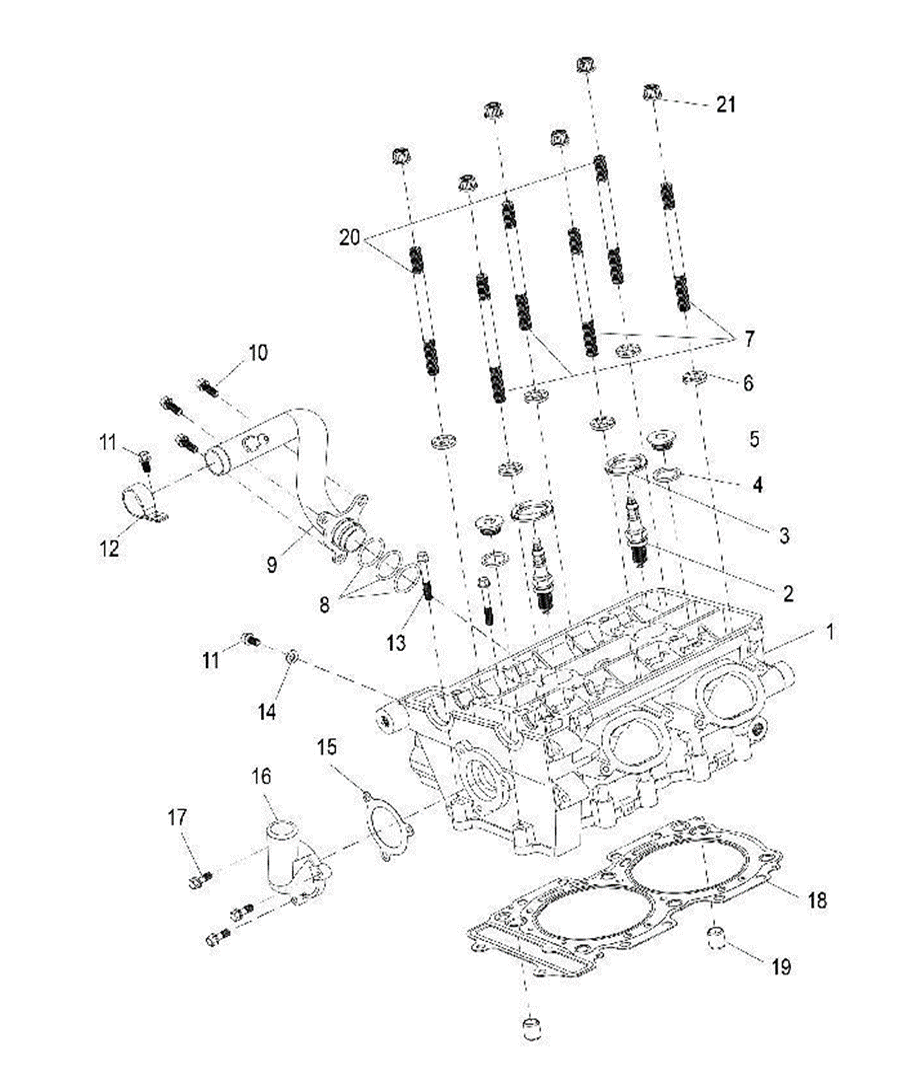

Engine Cylinder Head Assembly El Jefe
