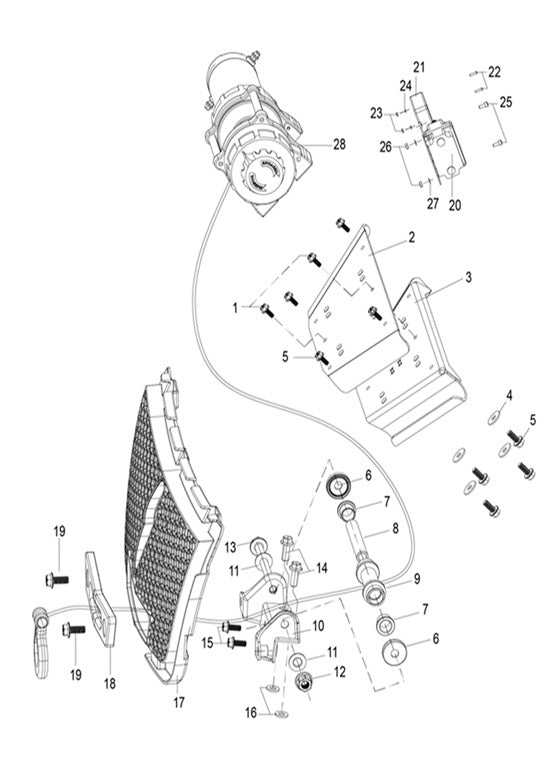

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Hex bolt with flange M6×20_el jefeBGB16674-M6×20 $0.40 |
BGB16674-M6×20 | $0.40 | |
| 2 | BracketB18992200 $35.80 |
B18992200 | $35.80 | |
| 3 | BracketB18992100 $81.41 |
B18992100 | $81.41 | |
| 4 | Washer 8BGB96.1-8 $0.12 |
BGB96.1-8 | $0.12 | |
| 5 | Hex bolt with flange M8×20BGB16674-M8×20 $0.45 |
BGB16674-M8×20 | $0.45 | |
| 6 | Trailing arm dust bracketB15211700 $5.10 |
B15211700 | $5.10 | |
| 7 | Flanged bushing φ18×φ22×20B19293B00 $12.10 |
B19293B00 | $12.10 | |
| 8 | Cylindrical bushing φ12×φ18×70B18992400 $28.00 |
B18992400 | $28.00 | |
| 9 | Swivel pinB18992300 $52.80 |
B18992300 | $52.80 | |
| 10 | BracketB18990200 $28.10 |
B18990200 | $28.10 | |
| 11 | Washer 12×27×2B19060100 $4.73 |
B19060100 | $4.73 | |
| 12 | Hex with flange nut M12B19030200 $2.51 |
B19030200 | $2.51 | |
| 13 | Hex bolt with flange M12× 1.25×160B19010800 $16.80 |
B19010800 | $16.80 | |
| 14 | Hex bolt with flange M10×25_el jefeBGB16674-M10×1.25×25 $0.69 |
BGB16674-M10×1.25×25 | $0.69 | |
| 15 | Hex bolt with flange M8×20BGB16674-M8×20 $0.45 |
BGB16674-M8×20 | $0.45 | |
| 16 | Washer 10×20×2BGB97.1-10 $0.12 |
BGB97.1-10 | $0.12 | |
| 17 | Front grillB28222800 $74.10 |
B28222800 | $74.10 | |
| 18 | CENTER LIGHT STRIPB18990400 $105.00 |
B18990400 | $105.00 | |
| 19 | Hex bolt with flange M10×25BGB16674-M10×1.25×25 $0.69 |
BGB16674-M10×1.25×25 | $0.69 | |
| 20 | Relay$0.00 |
$0.00 | ||
| 21 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 22 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 23 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 24 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 25 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 26 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 27 | Winch Remote Receiver$0.00 |
$0.00 | ||
| 28 | Winch Remote Receiver$0.00 |
$0.00 |
Description
Accessories Winch Kit El Diablo
