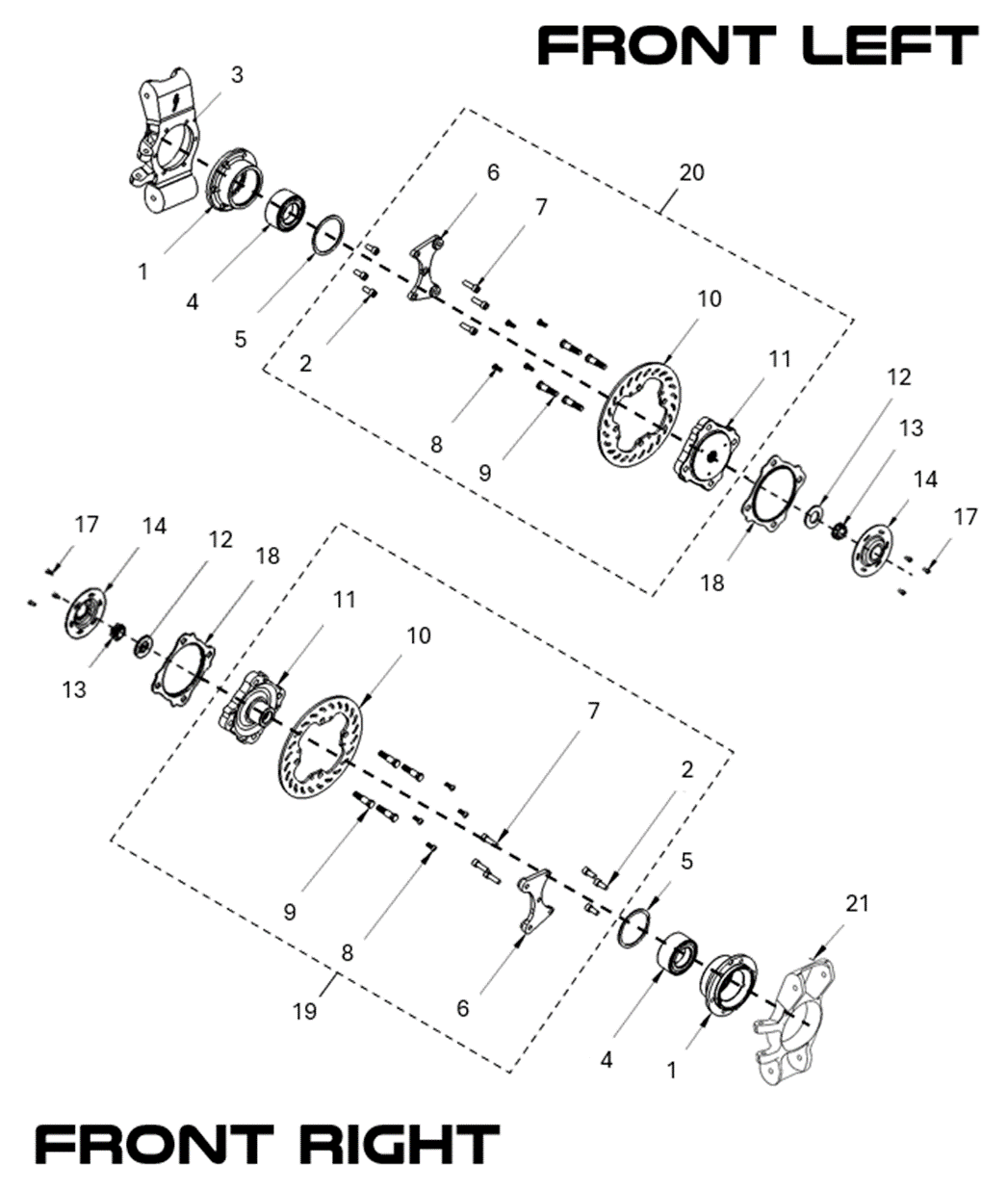

Product Mapper
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Wheel hub connectorB14611100 $250.00 |
B14611100 | $250.00 | |
| 2 | Inner hex screw M10× 1.25×25B19050900 $0.69 |
B19050900 | $0.69 | |
| 3 | Front left knuckleB15271100 $750.00 |
B15271100 | $750.00 | |
| 4 | Biserial angular contact ball bearing DAC509040B15210600 $88.70 |
B15210600 | $88.70 | |
| 5 | Two-layer circlip for hole φ97.76×φ6.35×2.82B14101100 $11.91 |
B14101100 | $11.91 | |
| 6 | Disc brake inlay bracketB14411300 $33.41 |
B14411300 | $33.41 | |
| 7 | Inner hex screw M10× 1.25×35B19050800 $0.69 |
B19050800 | $0.69 | |
| 8 | Inner hex flat head screw M8×20BGB70.2-M8×20 $0.32 |
BGB70.2-M8×20 | $0.32 | |
| 9 | Hub bolt M12×1.5B19020100 $3.16 |
B19020100 | $3.16 | |
| 10 | Front left brake padB14445100 $92.34 |
B14445100 | $92.34 | |
| 11 | Brake caliper mountB15330600 $160.99 |
B15330600 | $160.99 | |
| 12 | Arc gasketB12611300 $11.21 |
B12611300 | $11.21 | |
| 13 | CV shaft nut M22×1.5B12611100 $17.42 |
B12611100 | $17.42 | |
| 14 | Wheel nut lock plateB15150B00 $7.70 |
B15150B00 | $7.70 | |
| 17 | Flat washer5BGB97.1-5 $0.08 |
BGB97.1-5 | $0.08 | |
| 18 | Wheel hub gasketB14651200 $10.13 |
B14651200 | $10.13 | |
| 19 | Brake disc assemblyB15338000 $273.86 |
B15338000 | $273.86 | |
| 20 | Brake disc assemblyB15339000 $273.86 |
B15339000 | $273.86 | |
| 21 | Front right knuckleB15272100 $382.20 |
B15272100 | $382.20 |
Description
front wheel hub eldiablo
