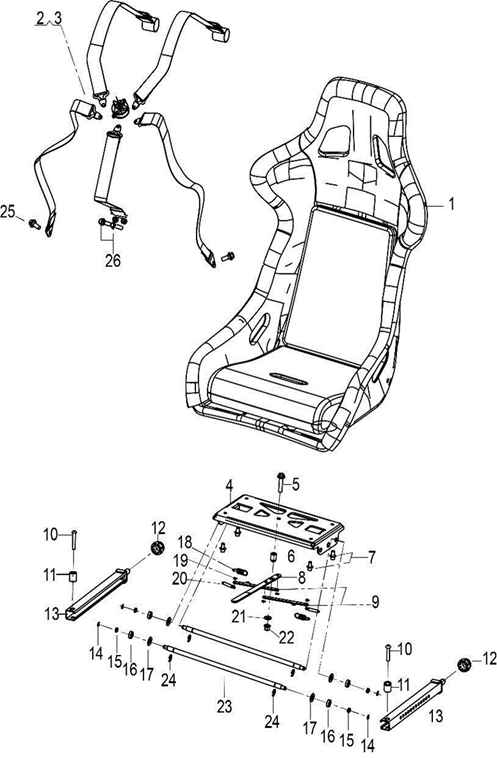

Seat-One
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Seat assemblyB17141000 $899.53 |
B17141000 | $899.53 | |
| 2 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 3 | MSRP: |
MSRP: |
Liquid error (snippets/part-product-form line 13): product form must be given a product
|
|
| 4 | Seat mount plateB17156000 $71.20 |
B17156000 | $71.20 | |
| 5 | Hex bolt with flange M10× 1.25×45'BGB16674-M10×1.25×45 $5.29 |
'BGB16674-M10×1.25×45 | $5.29 | |
| 6 | Slide rail fixing sleeveB171530AB $1.31 |
B171530AB | $1.31 | |
| 7 | Hex bolt with flange M8× 16BGB16674-M8×16 $0.43 |
BGB16674-M8×16 | $0.43 | |
| 8 | Slide rail adjust lever assemblyB17144000 $3.30 |
B17144000 | $3.30 | |
| 9 | Spring Retention PlateB17151300 $4.48 |
B17151300 | $4.48 | |
| 10 | Cylindrical bushing φ10×φ20×24B19290H00 $4.62 |
B19290H00 | $4.62 | |
| 11 | Seat pin rubber seatPJ00000933400001 $2.14 |
PJ00000933400001 | $2.14 | |
| 12 | Slide rail assembly ⅠB17154000 $28.57 |
B17154000 | $28.57 | |
| 13 | Split ring 6'BGB896-6-H $1.43 |
'BGB896-6-H | $1.43 | |
| 14 | Split ring 6BGB896-6-H $0.83 |
BGB896-6-H | $0.83 | |
| 15 | Cylindrical bushing φ9×φ12×4B19290F00 $9.24 |
B19290F00 | $9.24 | |
| 16 | Nylon bearings φ6×φ24×14B17153100 $4.03 |
B17153100 | $4.03 | |
| 17 | Flat washer φ12.5×φ24×2PJ00000906050800 $0.65 |
PJ00000906050800 | $0.65 | |
| 18 | Tension spring N (seat slide rail)PJ00000961001300 $0.29 |
PJ00000961001300 | $0.29 | |
| 19 | Split Ring 5BGB896-5 $0.14 |
BGB896-5 | $0.14 | |
| 20 | Slide rail fixing pin assemblyB17143000 $3.79 |
B17143000 | $3.79 | |
| 21 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 | |
| 22 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 | |
| 23 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 | |
| 24 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 | |
| 25 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 | |
| 26 | Flat washer φ10×φ20×2'BGB97.1-10 $0.49 |
'BGB97.1-10 | $0.49 |
Description
Body-Part-Seat-One
