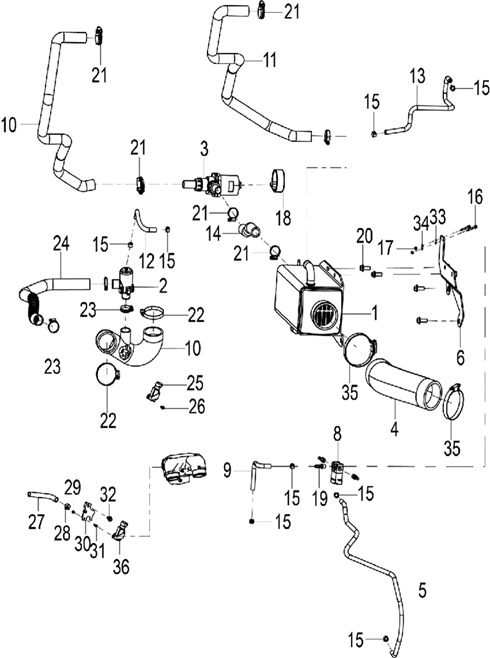

Inter_Cooler
| Item Number | Description | Part Number | Price | |
|---|---|---|---|---|
| 1 | Intercooler assemblyB11925A00 $436.57 |
B11925A00 | $436.57 | |
| 2 | Turbo pressure relief valveE01740200 $157.96 |
E01740200 | $157.96 | |
| 3 | Water pump assemblyB13960011 $212.72 |
B13960011 | $212.72 | |
| 4 | Intercooler connect tube IB11925100 $139.97 |
B11925100 | $139.97 | |
| 5 | Turbo exhaust pressure valve tube ⅡB11661500 $20.90 |
B11661500 | $20.90 | |
| 6 | Intercooler mountB15111800 $11.33 |
B15111800 | $11.33 | |
| 7 | Intercooler connect tube IIB11925200 $419.90 |
B11925200 | $419.90 | |
| 8 | Turbine exhaust gas pressure valveB11655102 $116.45 |
B11655102 | $116.45 | |
| 9 | Turbo pressure relief valve tube IB11724200 $4.70 |
B11724200 | $4.70 | |
| 10 | Inlet tube IIB11900300 $93.31 |
B11900300 | $93.31 | |
| 11 | Outlet tube IIIB11900600 $55.99 |
B11900600 | $55.99 | |
| 12 | Turbo pressure relief valve tube IB11724200 $4.70 |
B11724200 | $4.70 | |
| 13 | Turbo exhaust pressure valve tube ⅠB11661400 $11.18 |
B11661400 | $11.18 | |
| 14 | Outlet tube IIB11900500 $23.33 |
B11900500 | $23.33 | |
| 15 | Elastic clamp C（φ9）PJ00000907100200 $1.14 |
PJ00000907100200 | $1.14 | |
| 16 | Inner hex cylindrical head screw M3×25BGB70.1-M3×25 $0.82 |
BGB70.1-M3×25 | $0.82 | |
| 17 | Hex nut M3BGB6170-M3-C $0.32 |
BGB6170-M3-C | $0.32 | |
| 18 | Water pipe fixing clamp VIB11902800 $2.92 |
B11902800 | $2.92 | |
| 19 | Vent G1/8×29B11655300 $6.65 |
B11655300 | $6.65 | |
| 20 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 21 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 22 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 23 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 24 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 25 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 26 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 27 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 28 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 29 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 30 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 31 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 32 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 33 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 34 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 35 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 | |
| 36 | Hex bolt with flange M8× 20BGB16674-M8×20 $0.54 |
BGB16674-M8×20 | $0.54 |
